Product Highlights

• PEAK Nighthawk Steel Rear Bumper: Heavy-duty steel rear bumper engineered specifically for the SsangYong Musso.
• Integrated 3500kg Tow Bar: Class 4 tow bar with 50mm hitch receiver, positioned higher for improved departure angle and clearance.

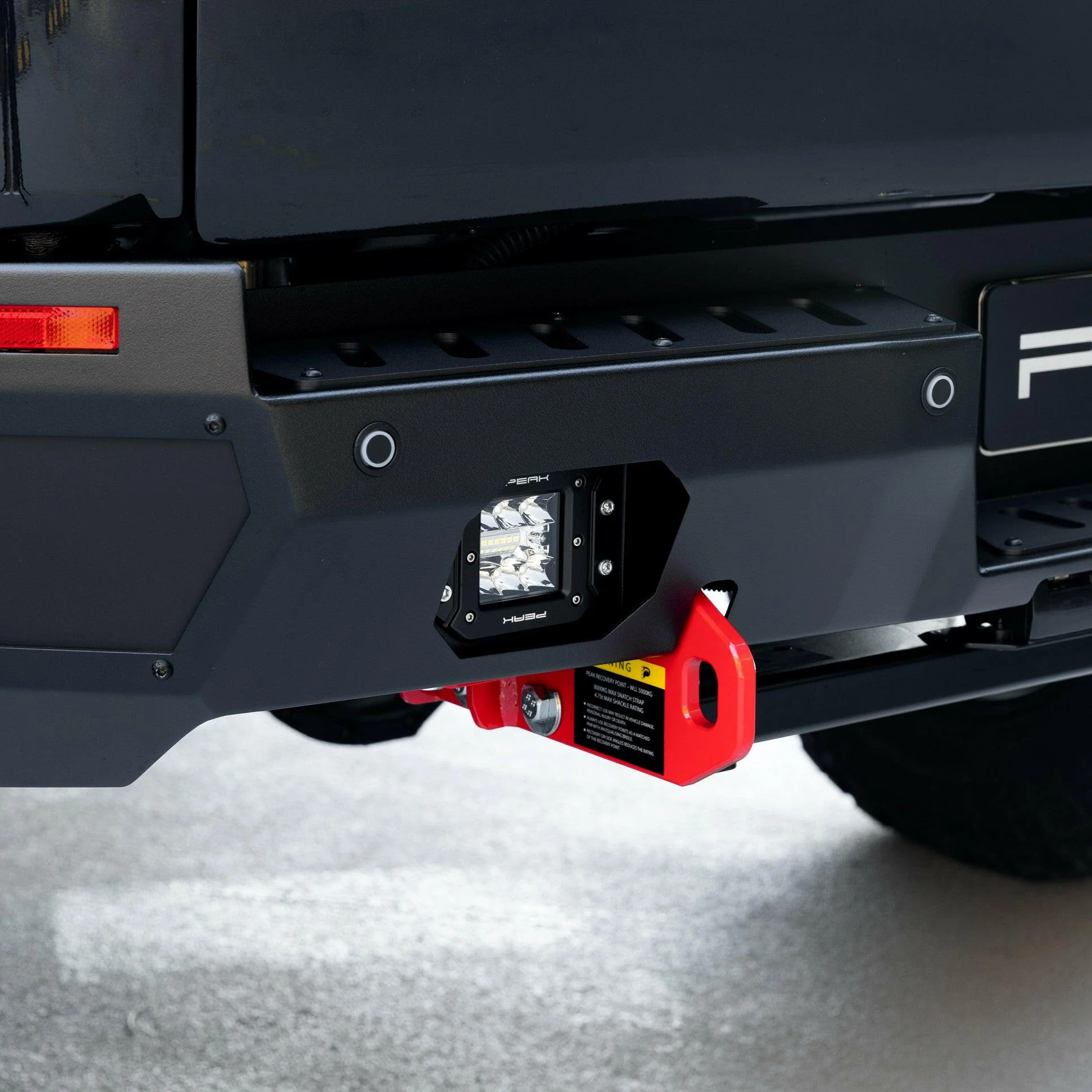

• Integrated Recovery & Lighting: Built-in recovery points, cube flood lights, and number plate lights.
• Sensor & Safety System Compatible: Designed to retain factory parking sensors and blind spot monitoring functionality.
• ADR Approved: Tested and certified to Australian standards in a NATA-accredited laboratory.

---

Product Description

Overview

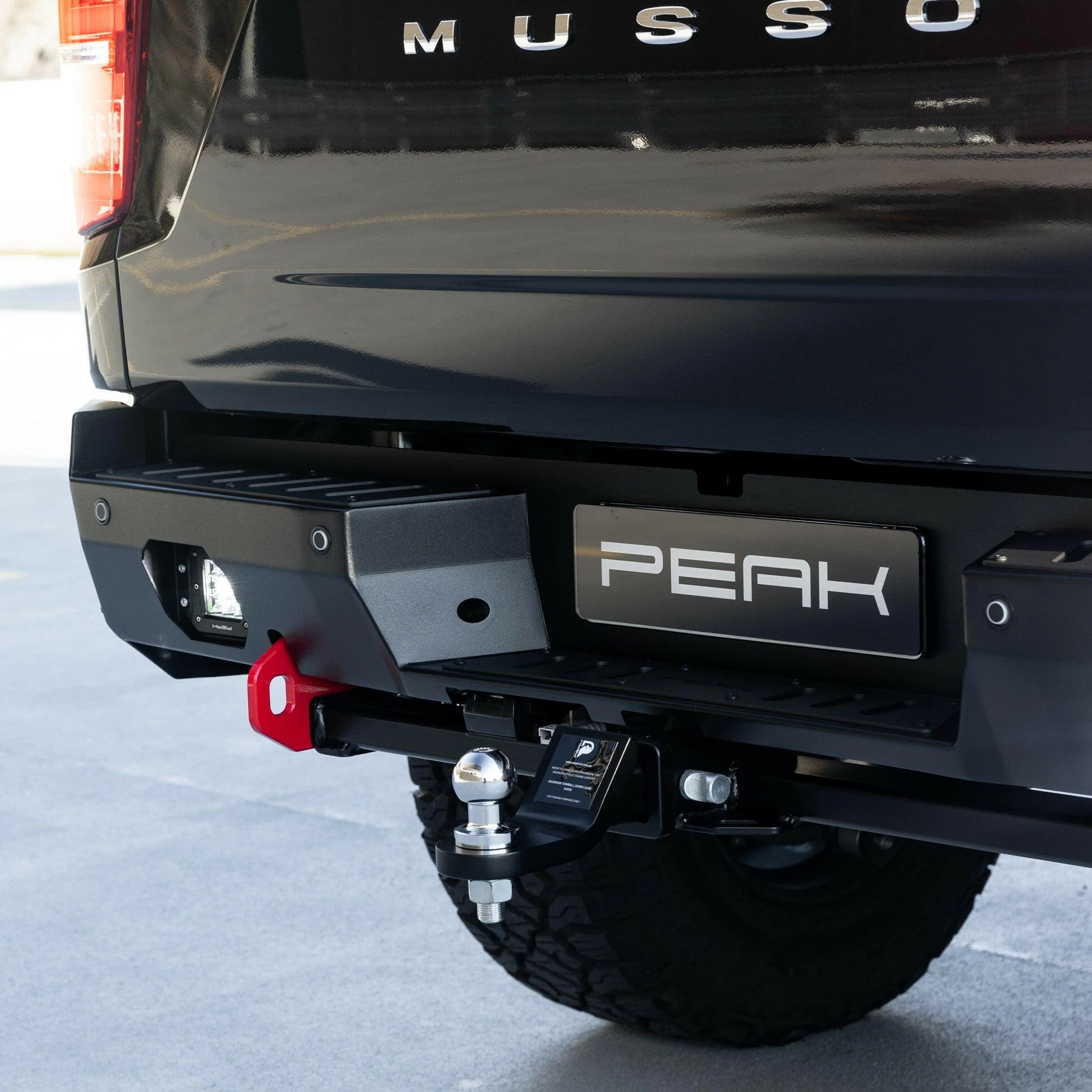

Upgrade the rear of your SsangYong Musso with the PEAK Nighthawk Steel Rear Bumper with Integrated Tow Bar, designed to deliver increased strength, towing capability, and off-road resilience while maintaining factory system integration.

Constructed from high-strength steel, the Nighthawk rear bumper integrates a 3500kg Class 4 tow bar directly into the structure, eliminating the need for separate towing hardware. The tow hitch is positioned approximately 70mm higher than many competitor designs, improving departure angle and ground clearance in off-road conditions.

With integrated recovery points, lighting provisions, and a functional step tread, this bumper is built to perform in demanding environments while remaining fully compliant with Australian regulations.

---

Key Features

• Integrated 3500kg Tow Bar:
  • Class 4 rating
  • 50mm hitch receiver
  • Optimised for improved ground clearance
• 5T WLL Rated Recovery Points: Designed for safe and controlled recovery operations.
• Integrated Lighting:

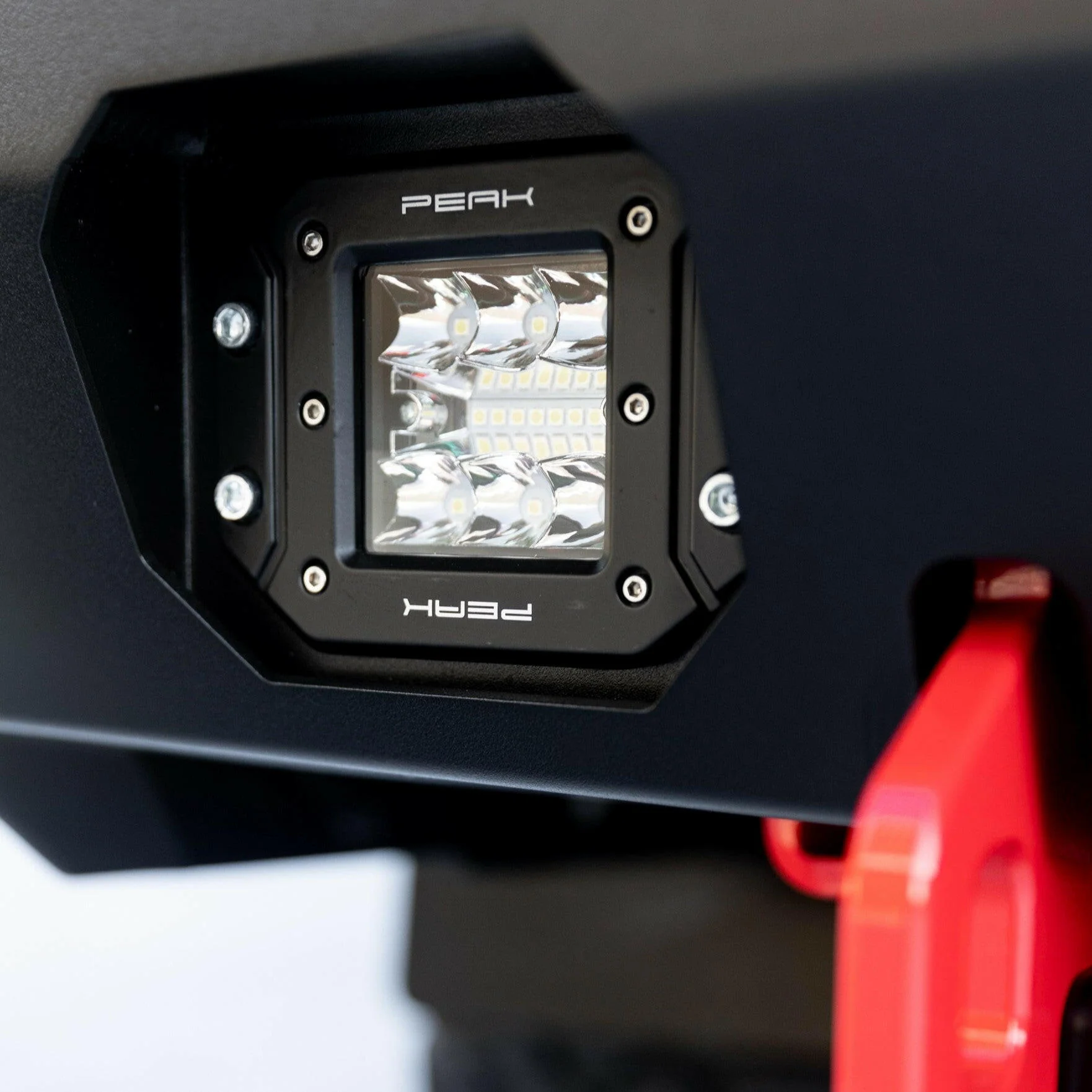

  • Cube flood lights for rear visibility
  • Integrated number plate lights
• Step Tread Design: Provides easier access to the cargo tub.
• Sensor Compatibility: Retains factory parking sensors and blind spot monitoring systems.
• Juton Powder-Coated Finish: Durable, corrosion-resistant coating suited to Australian conditions.
• ADR Compliant: Tested to AS 4177 and ADR 62/02 standards in a NATA-accredited laboratory.
• SWB & LWB Compatibility: Suitable for both short wheelbase and long wheelbase Musso variants.

---

Specifications

• Material: High-strength steel
• Finish: Juton powder coat
• Tow Rating: 3500kg (Class 4)
• Recovery Points: 5T WLL rated
• Lighting: Integrated cube flood lights & number plate lights
• Compliance: AS 4177 & ADR 62/02 (NATA tested)
• Vehicle Compatibility:
  • SsangYong Musso SWB
  • SsangYong Musso LWB
• Mounting: Direct bolt-on replacement
• Package Includes:
  • Rear bumper assembly with integrated tow bar
  • Recovery points
  • Lighting components
  • Mounting hardware
  • Installation guide

---

Installation & Maintenance

Designed for direct bolt-on installation using factory mounting points. No cutting or welding required. Professional installation is recommended to ensure correct sensor calibration and compliance.

To maintain finish and performance, clean regularly with mild soap and water and inspect mounting hardware after off-road use.

Installation Guide: Download

Wiring Guide (TAG) : Download
