Product Highlights
- GX1 Hustler Bull Bar — Triple Loop: Full hoop front-end protection engineered specifically for the Lexus GX550.
- Maximum Protection & Presence: Triple loop design with centre and headlight hoops for comprehensive frontal coverage.
- Fully Loaded System: Includes lighting, CANBUS electronics, recovery points, winch cradle, and sensor integration as standard.
- Hybrid Steel & Aluminium Construction: Optimised for strength, safety, and weight efficiency.
- ADR69 & Airbag Compliant: Independently tested to meet Australian Design Rules.
Product Description
Overview

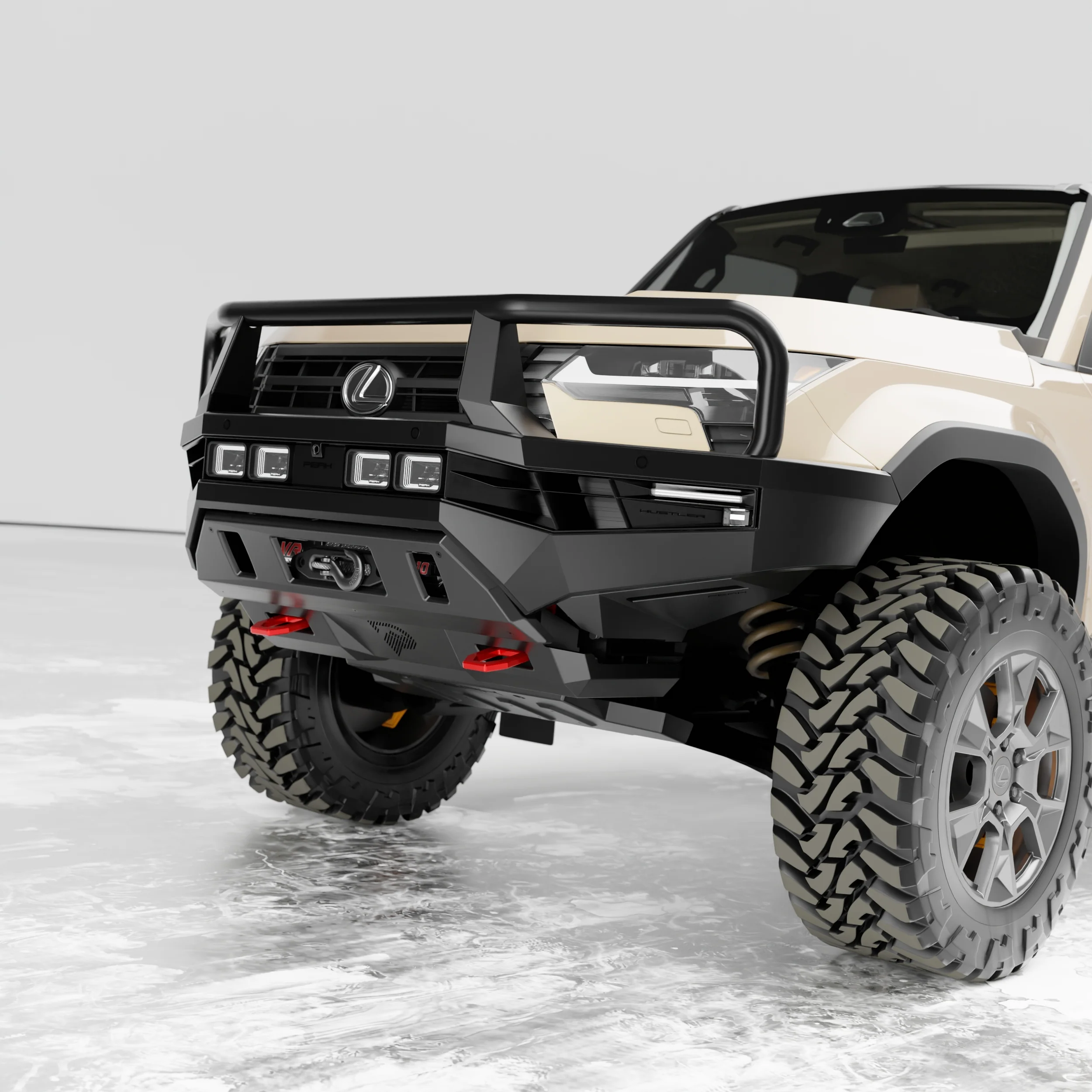

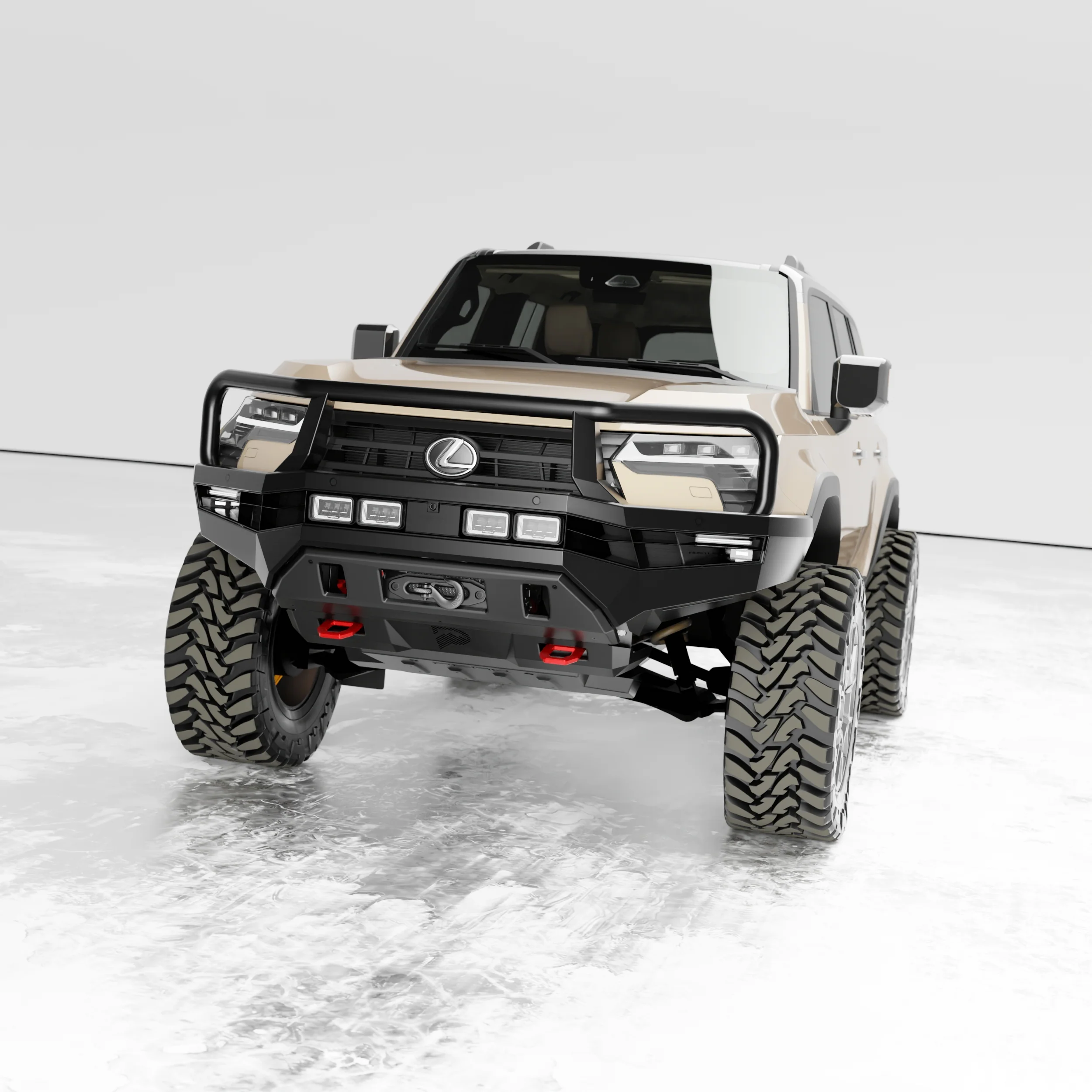

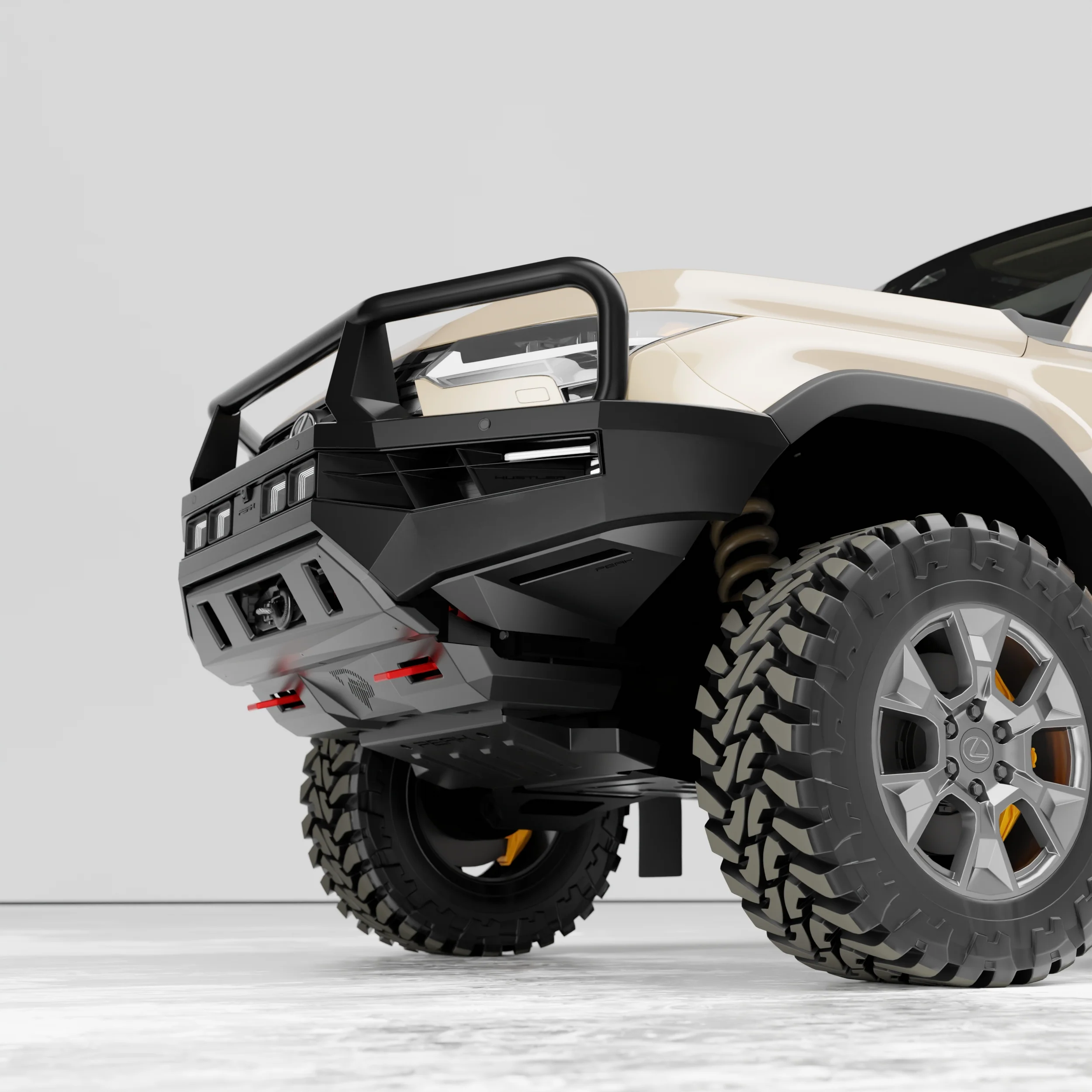

The GX1 Hustler Bull Bar — Triple Loop is the definitive front-end upgrade for the Lexus GX550 (2024+), designed to deliver uncompromising protection, integrated technology, and commanding presence.
Featuring a full triple loop structure with centre and headlight guards, the GX1 Hustler protects the most exposed areas of the vehicle without compromising airflow, cooling, or factory safety systems. Every GX1 Hustler arrives fully equipped as standard — no hidden costs, no optional extras required.
All lighting, electronics, recovery points, and mounting systems are integrated from the outset, resulting in a complete, ready-to-install solution.
Key Features
Integrated Lighting System
-
Quad PEAK LED Flood Lights:
Four precision-calibrated LED flood units with integrated DRLs for exceptional clarity and spread. -
Side-Mounted DRL / Indicator Combo Lights:
Designed to complement the GX550’s factory aesthetics while improving visibility. -
High-Output Fog Lamps:
Integrated into the bar for enhanced low-light performance.
Advanced System & Lighting Architecture
All lighting is housed within a high-gloss piano black grille, engineered to seamlessly integrate:- Front radar
- Front camera
- Airflow-enhancing ram ducts for dual intercoolers
CANBUS-Compatible Electronics
- Fully integrated CANBUS lighting control module included as standard
- Plug-and-play compatibility with GX550 electronics
- No additional modules or upgrades required
Hybrid Construction – Strength & Weight Efficiency
-
Main body & chassis bracing:
Solid steel construction — 6mm / 5mm / 3mm -
Bash plates:
5mm aluminium - Designed to reduce unnecessary weight while maintaining structural integrity and safety
Winch & Recovery Capability
-
Winch-Ready Cradle:
Compatible with low-mount winches up to 13,000lb -
Post-Install Winch Access:
Removable top plate allows winch installation without removing the bar -
5-Tonne Rated Recovery Points:
Dual integrated recovery points, engineered and tested for serious recovery scenarios
Vehicle & Tech Compatibility
-
Sensor & Radar Integration:
Full compatibility with factory parking sensors, radar, and front camera -
UHF Aerial Mounting Points:
Discreet, integrated mounting points included on all variants for clean cable management
Finish Options
- Jotun™ Satin Black Textured Powder Coat
Specifications
- Vehicle Compatibility: Lexus GX550 (2024+)
- Bar Type: Triple Loop – full front-end hoop protection
-
Construction:
- Steel: 6mm / 5mm / 3mm (main body & chassis bracing)
- Aluminium: 5mm (bash plates)
-
Lighting:
- 4 × PEAK LED flood lights with DRLs
- Side-mounted DRL/indicator combo lights
- Integrated high-output fog lamps
- Recovery Points: Dual integrated, 5T rated
- Winch Compatibility: Up to 13,000lb (low-mount)
- UHF Mounts: Integrated (included)
- Electronics: Full CANBUS integration included
- Compliance: ADR69 compliant, airbag compatible
Installation & Maintenance
Installation Notes
- Supplied with all required mounting hardware, brackets, lighting, and CANBUS module
- Winch can be installed after bar fitment
- Lighting connectors are plug-and-play on CANBUS-equipped GX550 models
- Professional installation strongly recommended due to radar, camera, and sensor calibration requirements
Maintenance Guidelines
- Inspect mounting bolts, recovery points, and bash plates periodically, especially after off-road use
- Clean powder-coated surfaces with mild soap and water only
- For primed units, follow automotive refinishing best practices prior to painting
- Check lighting and sensor connections periodically
- Ensure all ADAS zones remain clean and unobstructed
Availability
Pre-Orders Now Open
First Deliveries: March 2026
Why the GX1 Hustler?
This is a complete, fully-loaded system — not a base bar with paid add-ons.
Where others charge extra for lighting, CANBUS modules, and recovery points, the GX1 Hustler arrives ready to go.
Nothing more to buy. Nothing more to fit.
