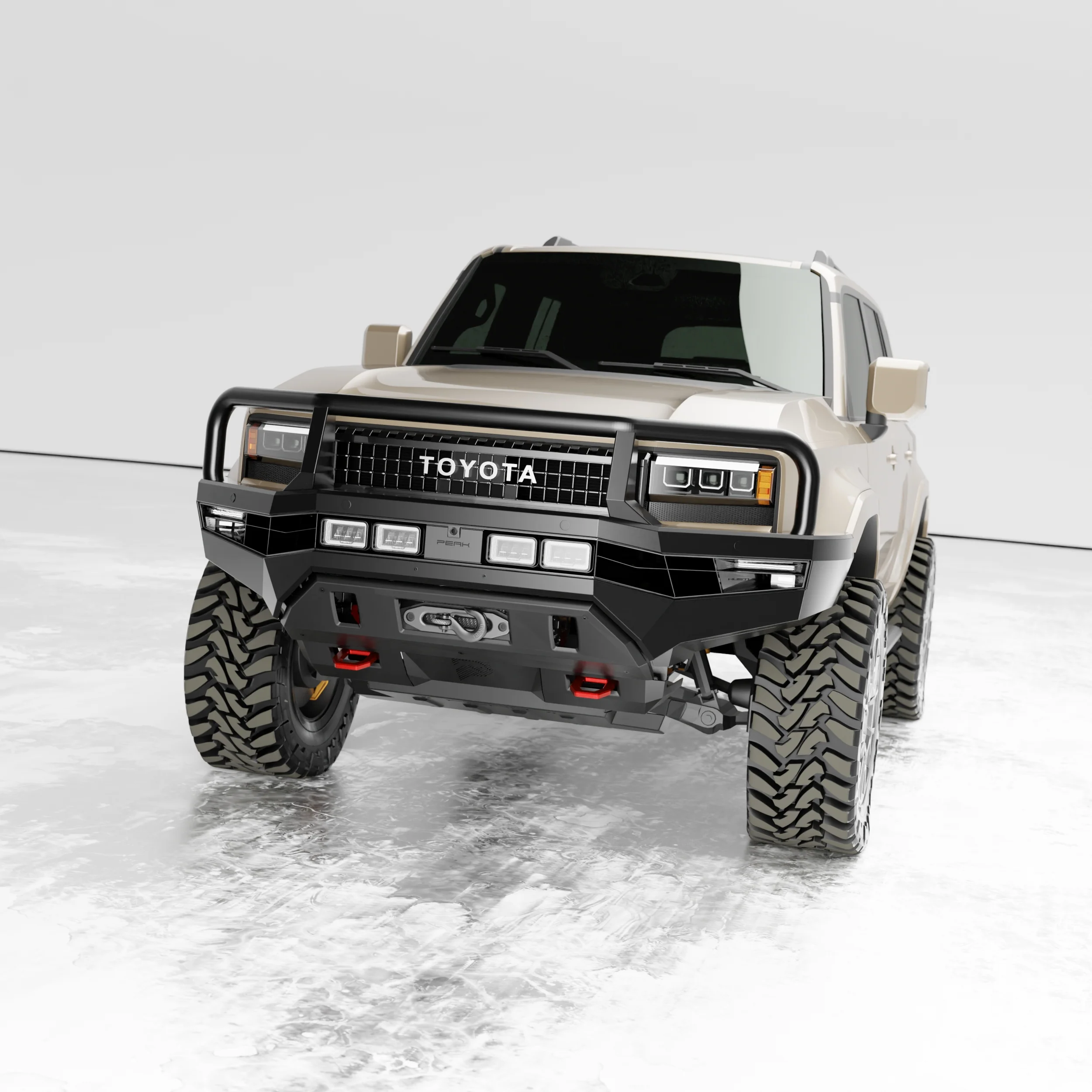

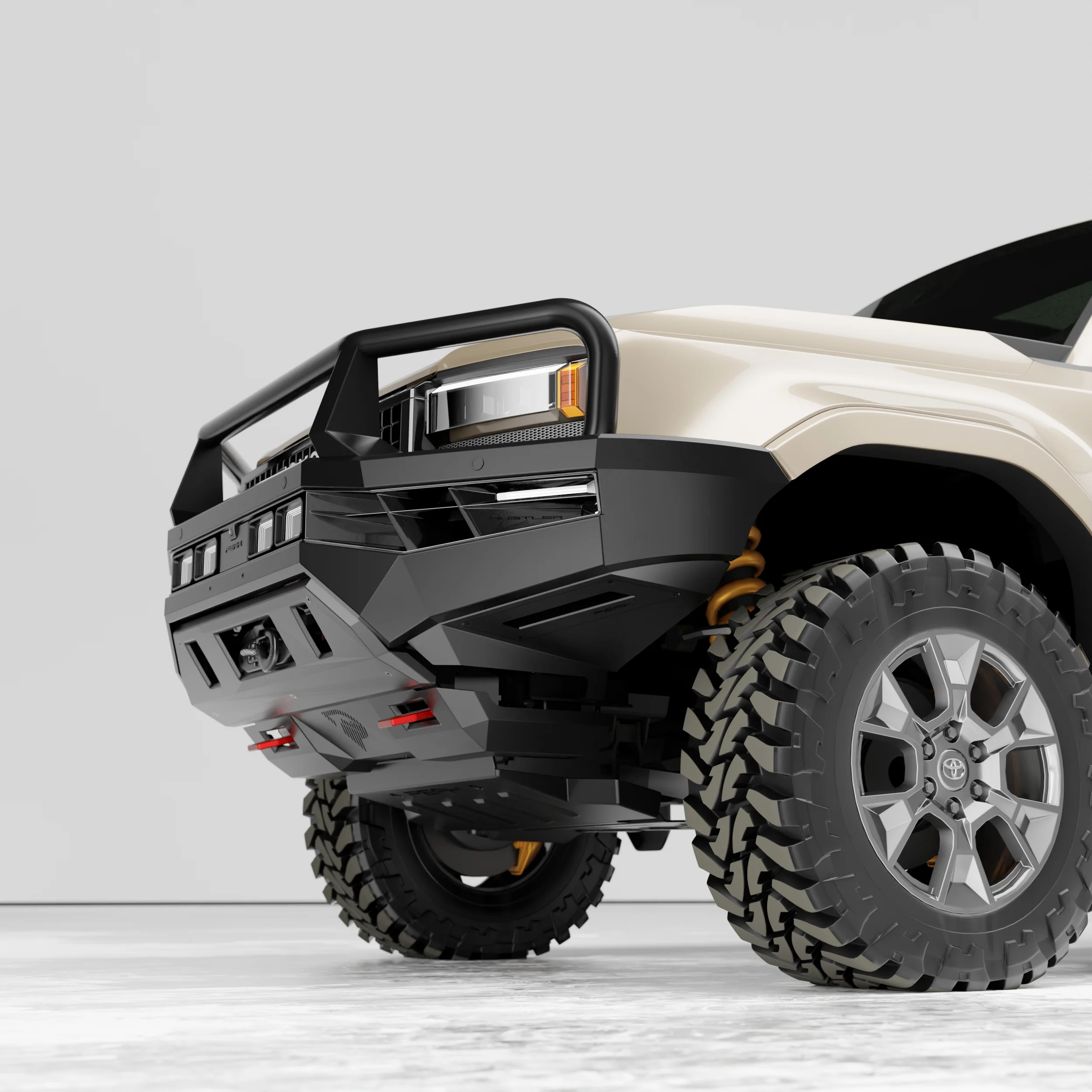

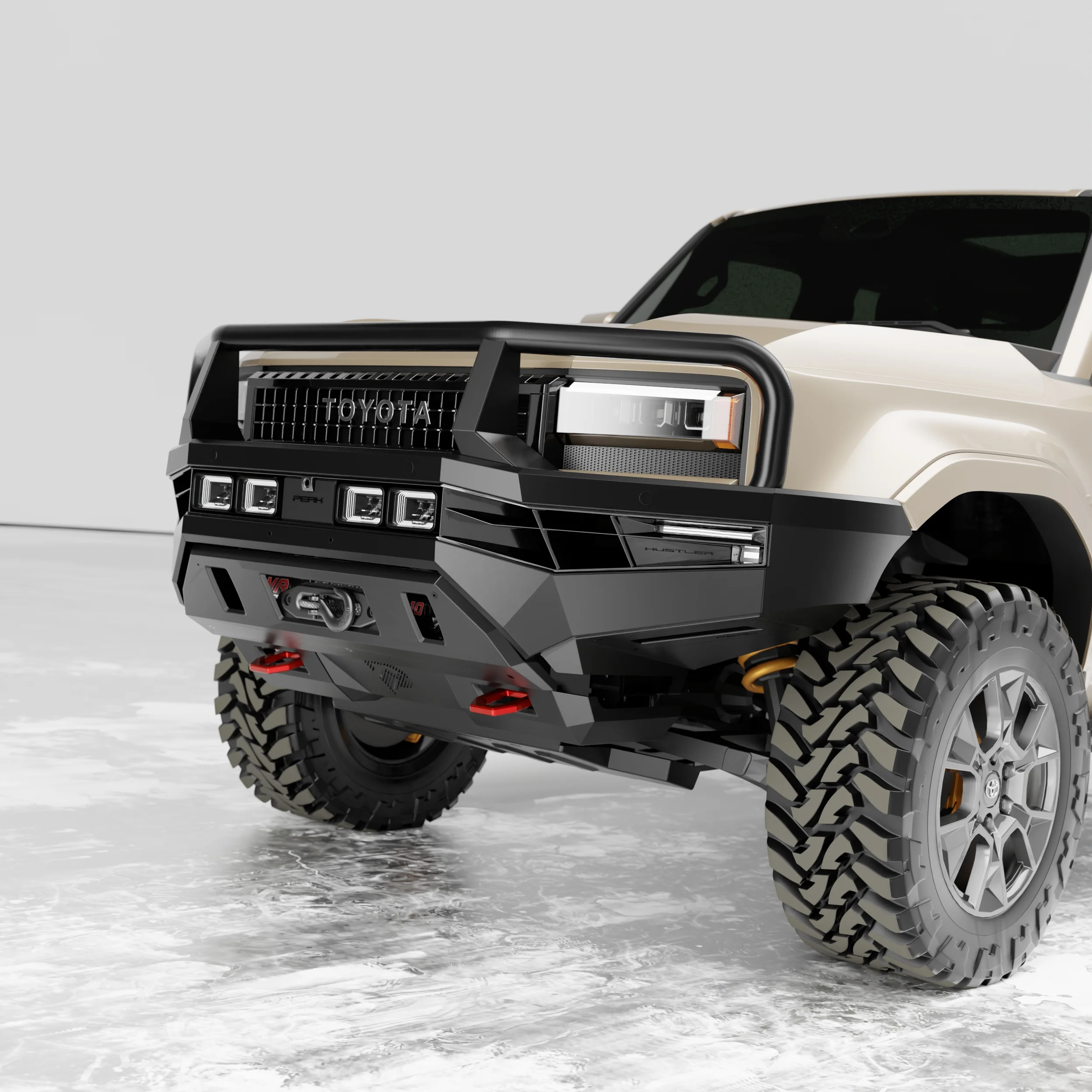

The LC1 Hustler Triple Loop is the definitive front-end upgrade for the Toyota Landcruiser Prado 250. Designed for full protection and maximum presence, it features a full hoop structure with centre and headlight guards, engineered to shield the most exposed areas without compromising airflow or sensor function.

Includes all core Hustler features — PEAK quad LED floods, DRL/indicator combo lights, CANBUS module, high-output fog lamps, winch-ready cradle, 5T recovery points, and full sensor/camera compatibility.

Key Features

Integrated Quad PEAK LED Flood Lights
Four precision-calibrated units with built-in DRLs for unmatched clarity and spread.

Side-Mounted DRL/Indicator Combo Lights + High-Powered Fog Lamps
Designed to complement the Prado 250’s factory aesthetics while boosting visibility in all directions.

Advanced System & Lighting Architecture
All lighting housed in a high-gloss piano black grille, seamlessly integrating radar, front camera, and airflow-enhancing ram ducts for dual intercoolers.

CANBUS-Compatible Electronics
Includes a fully integrated CANBUS lighting control module — standard, not an upsell.Hybrid Construction for Strength & Weight Efficiency

• Main body and chassis bracing: 6mm / 5mm / 3mm solid steel construction
• Bash plates: 5mm aluminium
  Designed to reduce weight without compromising strength or safety.

Winch-Ready Cradle
Compatible with low-mount winches up to 13,000lb. Winch can be installed after fitment via removable top plate access.

5-Tonne Rated Recovery Points
Dual integrated recovery points, designed and tested for serious recovery scenarios.

Sensor & Radar Integration

Full compatibility with factory parking sensors, radar, and front camera — precision placement, no compromises.

Discreet and practical mounts included on all variants, positioned for optimum signal and cable management.



Finish Options

• Jotun™ textured powder coat (satin black)


ADR69 Compliant & Airbag Compatible
Independently tested to meet all applicable Australian Design Rules and airbag deployment criteria.

Specifications

• Vehicle Compatibility: Toyota Landcruiser Prado 250 (2024+)
• Bar Type: Triple Loop Variant (full front-end hoop protection)

Construction

• Solid steel: 6mm, 5mm, 3mm (main body & chassis bracing)
• Aluminium: 5mm (bash plates)

Lighting

• 4 x PEAK LED flood lights with DRLs (integrated)
• Side-mounted DRL/indicator combo lights
• High-output fog lamps

Finish

• Jotun™ satin black powder coat


Recovery Points

• Dual integrated, 5T rated

Winch Compatibility

• Up to 13,000lb low-mount
• Post-install accessible via removable top plate

UHF Mounting

• Integrated aerial mounting points (included on all variants)

Tech Compatibility

• Full CANBUS integration included
• Retains radar, front camera, parking sensors

Certification

• ADR69 Compliant
• Airbag Compatible

Installation & Maintenance

Installation Notes

• Supplied with all required hardware, mounting brackets, and CANBUS control module
• Winch can be installed after the bar is mounted — no need to remove the bar
• Lighting connectors are plug-and-play for CANBUS-equipped Prado 250 models
• Professional installation is strongly recommended due to radar, camera, and sensor alignment

Maintenance Guidelines

• Inspect mounting bolts, recovery points, and bash plates periodically, especially after off-road use
• Clean powder-coated surfaces with mild soap and water only — avoid harsh chemicals
• For primed units, follow automotive refinishing best practices before painting
• Check lighting and sensor connections seasonally for ingress or corrosion
• Ensure all ADAS (radar, camera, sensor) zones remain clean and unobstructed

This is a complete, fully-loaded system — no hidden costs, no upsell surprises.

Where others start at a base price and charge extra for essentials like lighting, CANBUS modules, and recovery points, the LC1 Hustler arrives ready to go.
